Overview

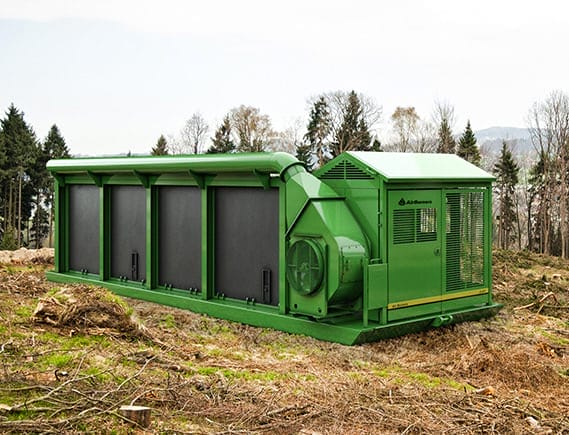

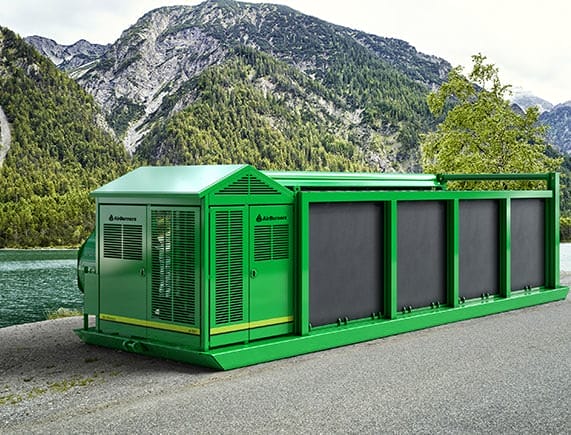

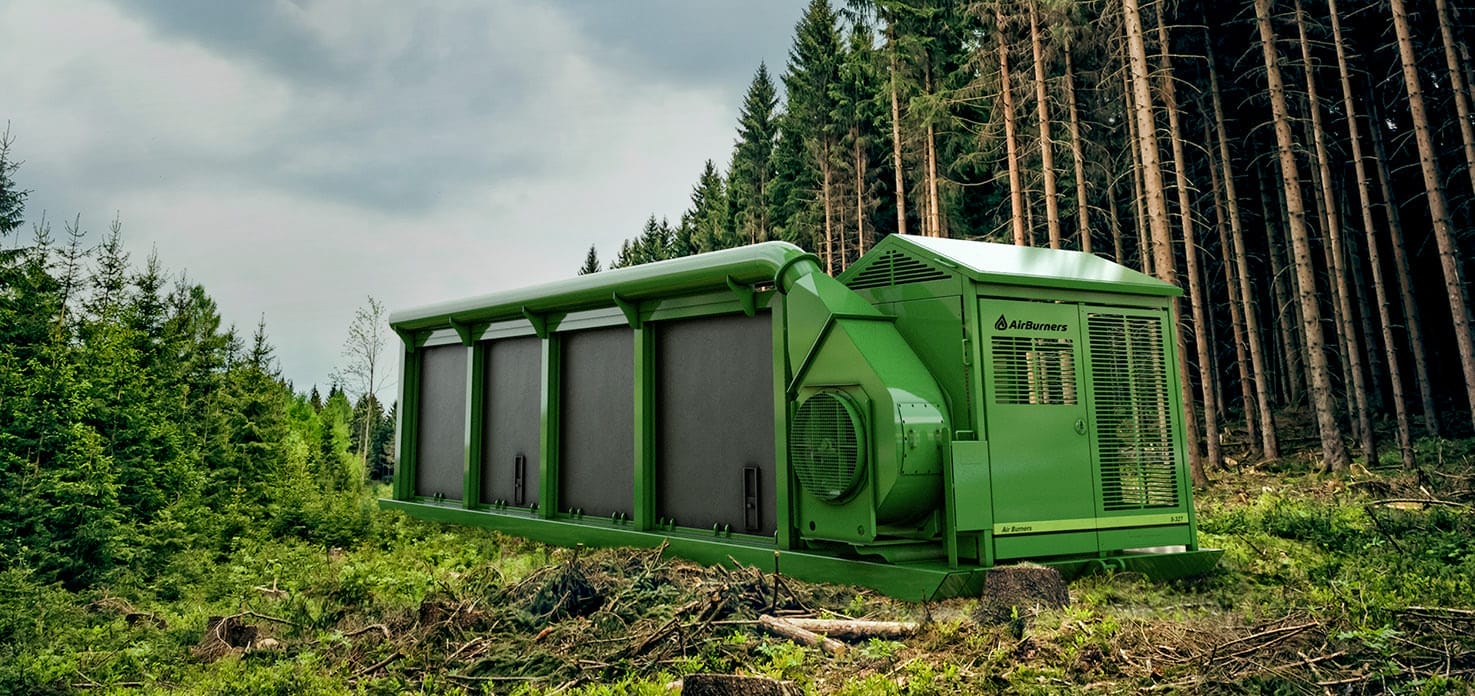

A self-contained, completely assembled above ground Air Curtain Burner (air curtain incinerator or FireBox) with a refractory lined burn-container for portable and permanent (stationary) applications. Designed for the high temperature burning of forest slash, land clearing debris, green waste, storm debris, and other waste streams in compliance with the requirements of U.S. EPA 40CFR60.

Shipped from the factory completely assembled ready for immediate use and does not require disassembly for relocation. The FireBox is also used for disaster recovery and Homeland Security contingencies and for certain MSW disposal applications. Electrically powered versions are available for permanent (stationary) installations.

FireBox Specifications

Power	Highly efficient turbo diesel engine or electric motors
Burn Container	4" (102 mm) thick refractory panels filled with proprietary thermal ceramic material; two full height rear doors; ignition holes
Transportation & Set-up	Shipped completely assembled; ready for immediate use; lifting pads provided for crane lifting; front deck security enclosure included as standard feature
Options	Ash clean-out rake; ember screen; heat recovery

FireBox Comparisons

MODEL	OVERALL SIZE L x W x H	FIREBOX L x W x H	WEIGHT lbs	FUEL CONSUMPTION gal/hr	THROUGH-PUT tons/hr
S330	40' 4" × 11' 10" × 9'	30' 2"× 8' 5" ×8'	59,000	3.0	9-13+
S327	37’ 4” x 11’ 10” x 9’	27’ 2” x 8’ 5” x 8’	54,600	3.0	8-10+
S220	30’ 2” x 8’ 6” x 8’ 6”	19’ 8” x 6’ 2” x 7’	35,000	2.0	5-8
S119	26' × 7' 5" × 7' 8"	19’ x 5‘ x 6’	29,700	1.9	3-5
S116	23’ x 7’ 5” x 7’ 8”	16’ x 5‘ x 6’	26,200	1.9	2-4
