FireBox 300 Series
AVAILABLE IN DIESEL & ELECTRIC
LARGEST FULLY ASSEMBLED FIREBOX
The fully assembled portable FireBox was invented by Air Burners. Ours are the only machines tested by the U.S. EPA, the U.S. Forest Service, the U.S. Department of Energy, and the U.S. Military to prove their specifications and performance, giving you confidence our machines work. The Air Burners FireBox is the most economical and environmentally sound method of eliminating wood and vegetative waste. The FireBox will reduce your waste to approximately two percent of its original weight, leaving you with a clean carbon ash that can be turned into the local soil. With other equipment, grinding and hauling to the landfill are a big part and cost of the forest-clearing job. With the FireBox, land clearing is much easier. After burning all day only a small amount of ash and BioChar remain, you will be increasing soil health (USDA) if it is turned back into the soil. Job done.
The diesel-powered biomass burning machines are efficient. The 300 Series machines will only consume 3.0 gallons of diesel fuel at full operating speed, and no other fuels are required because the waste is allowed to burn naturally without the addition of hydrocarbon based fuels. The FireBox will save you money on your waste elimination. The 300 Series unit has a frame size of approximately 12 feet high by 12 feet wide. We currently offer two machines in the 300 Series: the S327 and the S330. The S327 has a manifold length of 27 feet and the S330 has a manifold length of 30 feet. They typically ship by flat deck, RGN or drop deck trailers for over the road transport. They are very large machines and will require oversize permits for most roads. The FireBox can be either dragged onto the trailer with a winch or lifted onto the trailer. Like all of our FireBoxes, these air curtain burner units can be dragged around the site on their skids. The 300 Series units have two doors at the rear for ash and BioChar removal.
The fully assembled portable FireBox was invented by Air Burners. Ours are the only machines tested by the U.S. EPA, the U.S. Forest Service, the U.S. Department of Energy, and the U.S. Military to prove their specifications and performance, giving you confidence our machines work. The Air Burners FireBox is the most economical and environmentally sound method of eliminating wood and vegetative waste. The FireBox will reduce your waste to approximately two percent of its original weight, leaving you with a clean carbon ash that can be turned into the local soil. With other equipment, grinding and hauling to the landfill are a big part and cost of the forest-clearing job. With the FireBox, land clearing is much easier. After burning all day only a small amount of ash and BioChar remain, you will be increasing soil health (USDA) if it is turned back into the soil. Job done.
The diesel-powered biomass burning machines are efficient. The 300 Series machines will only consume 3.0 gallons of diesel fuel at full operating speed, and no other fuels are required because the waste is allowed to burn naturally without the addition of hydrocarbon based fuels. The FireBox will save you money on your waste elimination. The 300 Series unit has a frame size of approximately 12 feet high by 12 feet…

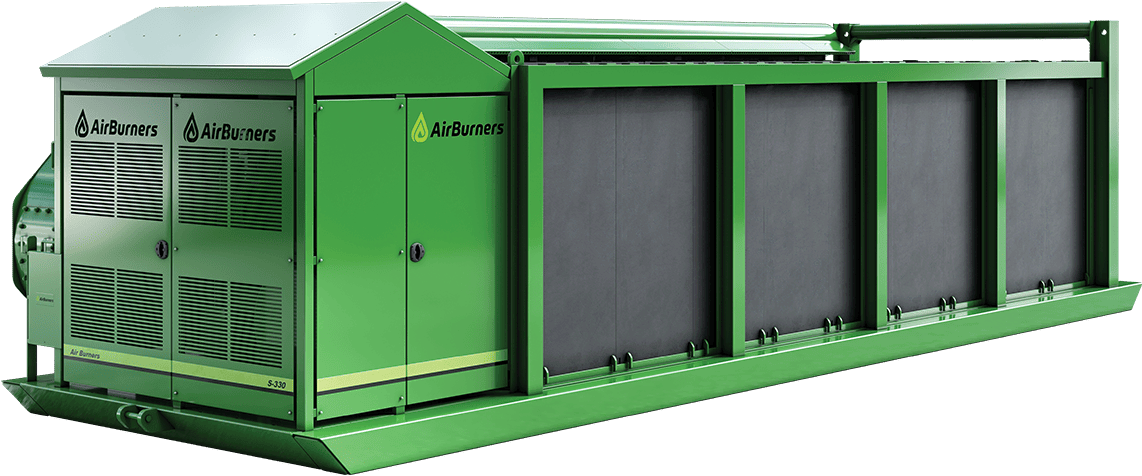

FireBox S330
The S330 is our largest FireBox that can be shipped from the factory fully assembled. As it is mostly used in stationary placements at landfills and transfer stations, it is often purchased as S330E equipped with a 75 HP electric motor and easy to operate pre-programmed speed controller. As with all our machines, we offer on-site operator training and certification and internet-based remote webinar training. Training by factory instructors can be very helpful in getting a good start with your new machine and to assure safe operation in compliance with local permits and regulations.
Get PricingProduct Specs
POWER | We offer two options: (1) Four-cylinder 74 hp Turbo Diesel Engine, HATZ 4H50TIC or equivalent engine; Does not require DEF; Emissions certified U.S. EPA Tier 4F; Engine mounted fluid coupling (automatic clutch) or (2) 75 HP Premium Electric Motor, 3-Phase 460V, 60 Hz or 50 Hz; Full enclosure; Security locks; NEMA IV Enclosure for VFD Speed Control. |
OVERALL SIZE L x W x H | 40' 4" × 11' 10" × 9' 6"[12.3 m x 3.6 m x 2.9 m] |
FIREBOX L x W x H | 30' 2"× 8' 5" × 8' 1"[9.2 m x 2.6 m x 2.5 m] |
WEIGHT | 59,000 lbs[26,700 kg] |
FUEL CONSUMPTION | 3.0 gal/hr[11.4 L/hr] |
THROUGH-PUT | 11-13 tons/hr |
FireBox S327
The S327 has been our largest workhorse from the very beginning of the Company. It has been the preferred machine by FEMA to eliminate woody debris during disaster recovery operations for more than twenty years. There is not a major natural disaster where Air Burners machines have not played a leading cleanup role. This model can also be found at many landfills and transfer stations in the US and abroad.
Get PricingProduct Specs
POWER | We offer two options: (1) Four-cylinder 74 hp Turbo Diesel Engine, HATZ 4H50TIC or equivalent engine; Does not require DEF; Emissions certified U.S. EPA Tier 4F; Engine mounted fluid coupling (automatic clutch) or (2) 75 HP Premium Electric Motor, 3-Phase 460V, 60Hz or 50 Hz; Full enclosure; Security locks; NEMA IV Enclosure for VFD Speed Control. |
OVERALL SIZE L x W x H | 37' 4" × 11' 10" × 9' 6"[11.4 m x 3.6 m x 2.9 m] |
FIREBOX L x W x H | 27' 2"× 8' 5" × 8' 1"[8.3 m x 2.6 m x 2.5 m] |
WEIGHT | 54,600 lbs[24,800 kg] |
FUEL CONSUMPTION | 3.0 gal/hr[11.4 L/hr] |
THROUGH-PUT | 9-11 tons/hr |
