POWERED BY NATURE

POWERED BY NATURE

OFF-GRID

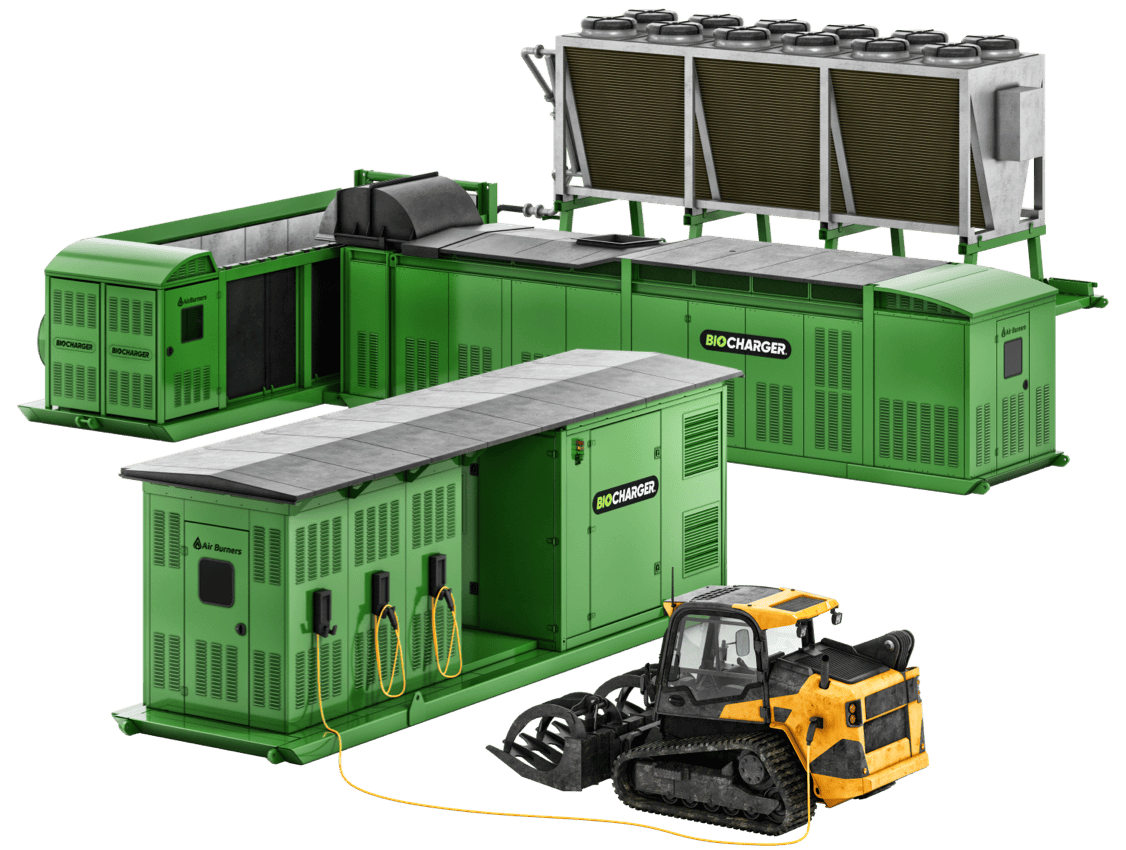

BioCharger

The BioCharger permanently eliminates biomass waste without emitting harmful greenhouse gasses like methane and black carbon-the second biggest contributor to climate change after carbon dioxide.

By turning that waste into energy, the portable BioCharger generates power to feed on-site charging stations, effectively closing the energy loop so you can work off-grid and keep your electric vehicles, forklifts, excavators, chainsaws, lights, and job site up and running.

Get Pricing
BioCharger *Vehicles not included

Product Specs

Length

Battery Storage: 28'
Power Module: 34'
FireBox Module: 30'
Cooling Module: 32'
Width

Battery Storage: 7’ 5”
Power Module: 7' 5"
FireBox Module: 7' 5"
Cooling Module: 7'
Height

Battery Storage: 9'
Power Module: 8' 5"
FireBox Module: 8' 5"
Cooling Module: 13'
Weight

Battery Storage: 28,000 lbs
Power Module: 35,500 lbs
FireBox Module: 36,000 lbs
Cooling Module: 17,500 lbs
Through-put

6-8 tons/hr
Battery storage capacity

550 kWh
Price

$1,800,000
*All specifications are approximate

BIOCHARGER: THE INS & OUTS

The BioCharger is fully automated and can be connected to the internet via remote access. The remote access is helpful if there is ever a problem as our team can connect to your machine remotely, troubleshoot the problems and apply the fix remotely. In addition our team will get an alarm if an issue exists. Operating the BioCharger is simple, press the "green" start button and the system will go through all the internal checks, then it will look for heat from the FireBox Module. If there is heat from the FireBox Module then the generator will start and the energy will be delivered to the Battery Storage Module. If at any time during the day heat is not present from the FireBox Module then the system goes into Standby Mode. As soon as it senses heat it will start up and generate energy. At the end of day you push the "Red" stop button and the system goes into shut down mode, ready for another day. The Battery Storage Module (BSM) can be used anytime day or night but the general operating procedure is to eliminate waste all day which sends energy to the BSM. At the end of the work day your battery powered machines are connected to the BSM and recharged, ready in the morning for a days work on "free" energy. The BioCharger closes the energy loop so you can work off grid and charge your vehicles, equipment, and power tools.

Get Pricing
BIOCHARGER: THE INS & OUTS

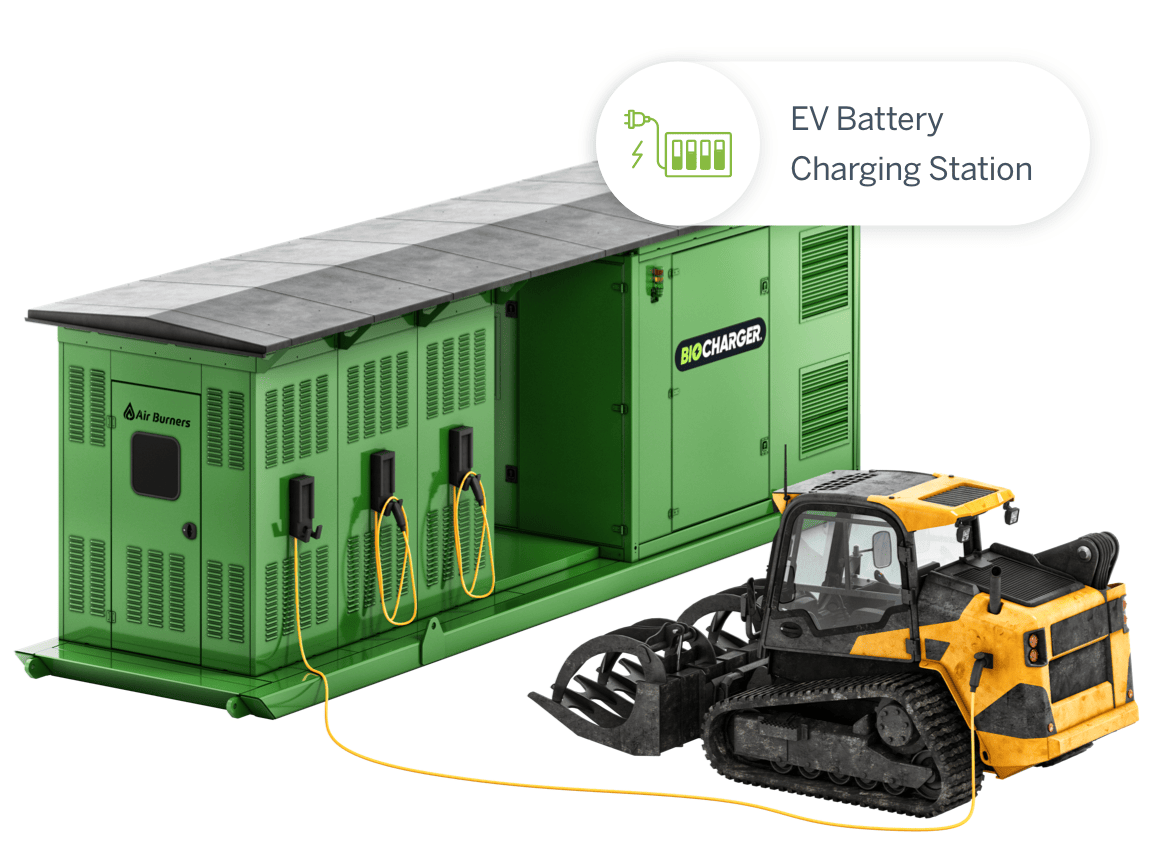

RECHARGED AND READY TO GO Vehicles not included.

RECHARGED AND READY TO GO

The energy generated during the workday is transferred and stored at the Battery Storage Module where your fleet of battery-powered machines can recharge. The BioCharger creates and holds 400 to 700 kW per day (depending on options chosen), more than enough energy to recharge three or six machines. When you arrive at the job site the next day, everything will be fully-charged and ready to go. The power remaining in the storage batteries will be enough to start the BioCharger and continue the cycle.

Get Pricing

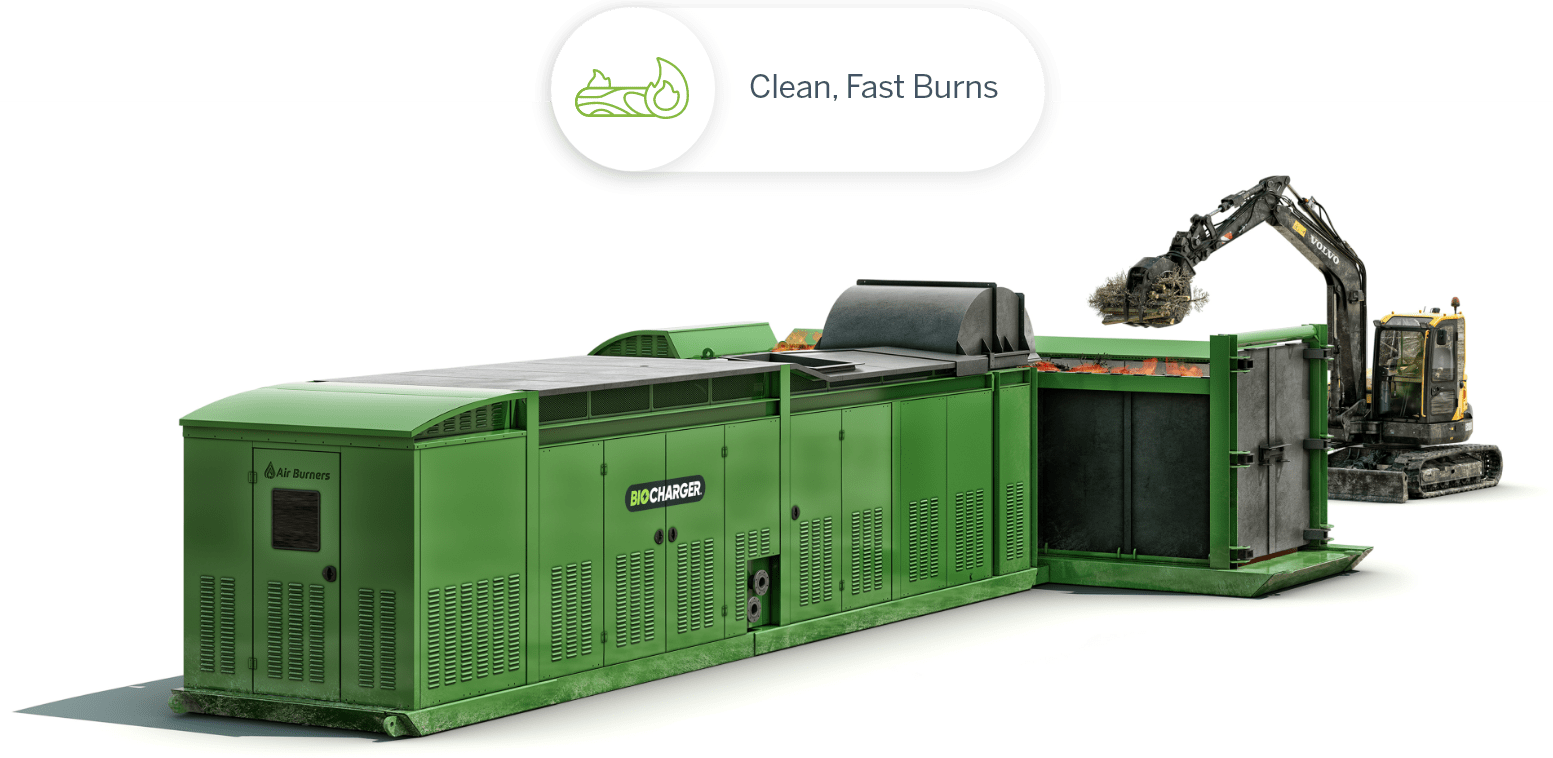

WASTE GOES IN. ENERGY COMES OUT.

Naturally powerful, the BioCharger eliminates up to 10 tons of clean wood and vegetative waste per hour while generating enough electricity to recharge at least four machines at night. Extracted heat gets funneled into the Power Module, where working fluid expands in the Organic Rankine Cycle generator. The energized fluid spins a turbine creating electricity that feeds and charges batteries.

 The Battery Storage Module stores the energy created during the work day and recharges the battery-powered machines after work. The Air Burners BioCharger creates and stores 400 to 700 kWh per day-enough power to recharge at least four machines. Your battery-powered machines and tools will be up and running the next day, and the residual power from the storage batteries will start the BioCharger and continue the cycle.

 Performance-tested by air quality agencies worldwide, such as the US EPA, UK EA, Environment Canada, and the Australian Environmental Agency, this air curtain burner reduces harmful black carbon emissions, and produces soil-restorative biochar as a byproduct.
Read More Read Less
TURN WASTE INTO ENERGY WITH THE SUPERCHARGING POWERS OF BIOCHARGER

TURN WASTE INTO ENERGY WITH THE SUPERCHARGING POWERS OF BIOCHARGER

  • <p>Reduces Wood<br /> Waste By 98%</p>

    Reduces Wood
    Waste By 98%

    Ten tons of logs in -- gives you a couple hundred pounds of ash out. This ash and Biochar can be used for multiple purposes like agriculture, growers, and nurseries.

  • <p>Captures Energy<br /> From The Wood Waste</p>

    Captures Energy
    From The Wood Waste

    It captures energy in wood waste and converts it to electricity to use in battery operated machinery saving the cost of diesel fuel.

  • <p>Save Green,<br /> Make Green</p>

    Save Green,
    Make Green

    The BioCharger eliminates wood and the need for grinding, hauling, diesel fuel, and landfill fees. It saves you money while making green energy from green waste.

  • <p>Reduces Greenhouse<br /> Gas Emissions</p>

    Reduces Greenhouse
    Gas Emissions

    It significantly reduces greenhouse gas emissions compared to the current methods of disposal : grinding and landfilling.

  • <p>Easily<br /> Relocated</p>

    Easily
    Relocated

    With the BioCharger, the system is simply disconnected and moved; no permanent structures are necessary.

  • <p>Fully Self-contained<br /> and Ready to Use</p>

    Fully Self-contained
    and Ready to Use

    Equipment can be purchased and delivered for less than the cost of a typical tub grinder.

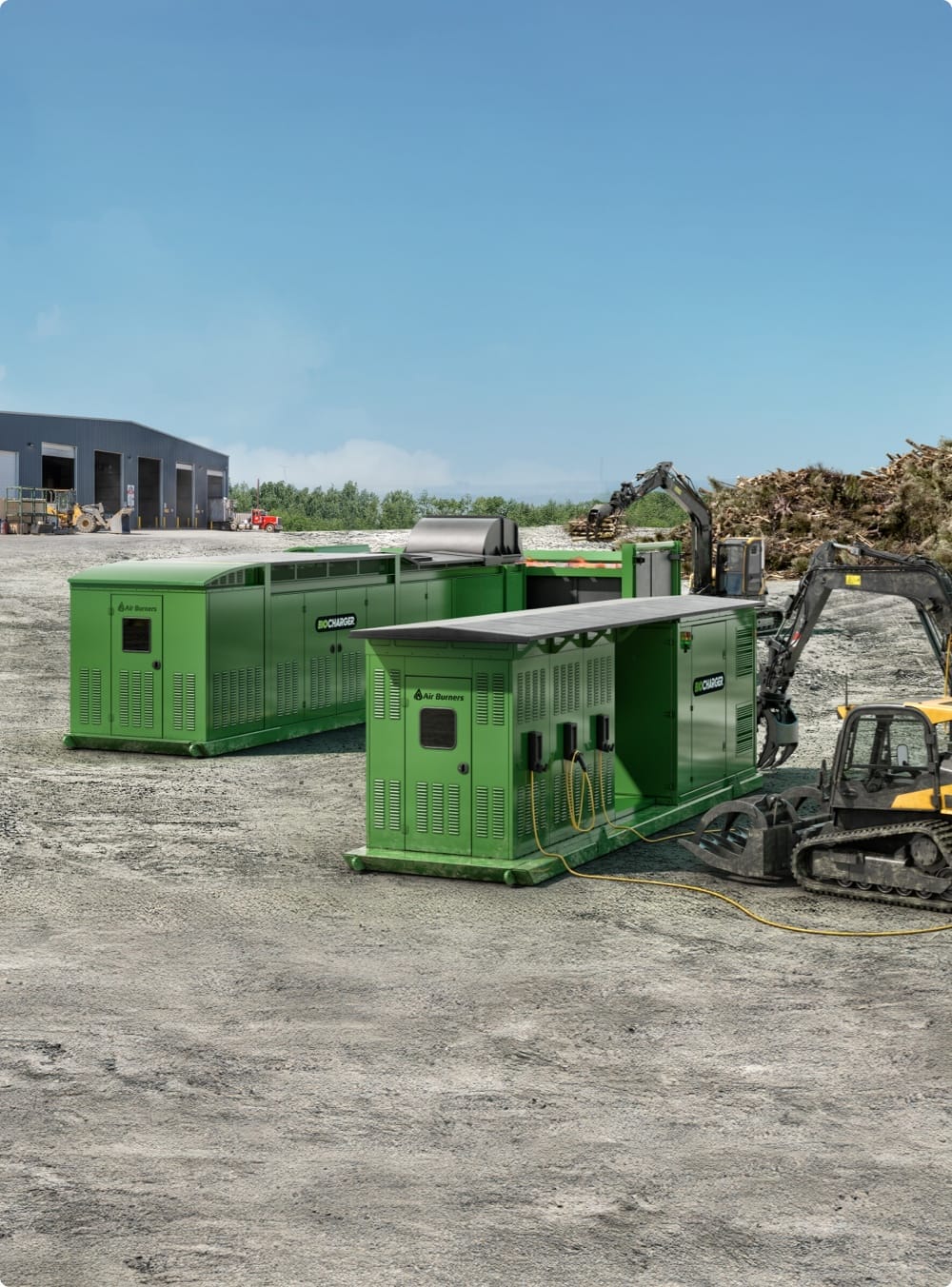

PROBLEM: WOOD WASTE SOLUTION: BIOCHARGER

30% of the world's waste is wood or vegetative, and it's continuing to pile up and grow bigger by the day. The fact that recycling offers no marketable value only adds to the problem. Enter Air Burners-with over 25 years of industry-leading experience, we have developed technologically-advanced machines that get at the root of the problem by eliminating woody debris once and for all.

PROBLEM: WOOD WASTE SOLUTION: BIOCHARGER
THREE COMPANIES, ONE REVOLUTIONARY MACHINE

THREE COMPANIES, ONE REVOLUTIONARY MACHINE

BioCharger, made exclusively by Air Burners, and developed through a successful partnership with Volvo Construction Equipment and Rolls Royce, is an eco-friendly, cost-effective solution to eliminate vegetative waste while generating renewable energy to charge batteries onsite.
